Exceptional output, small footprint and IP55 & IP66 hygienic/washdown design

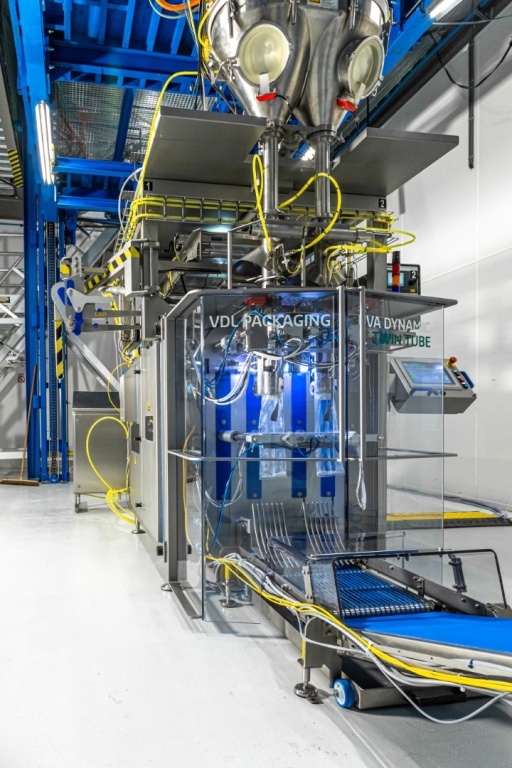

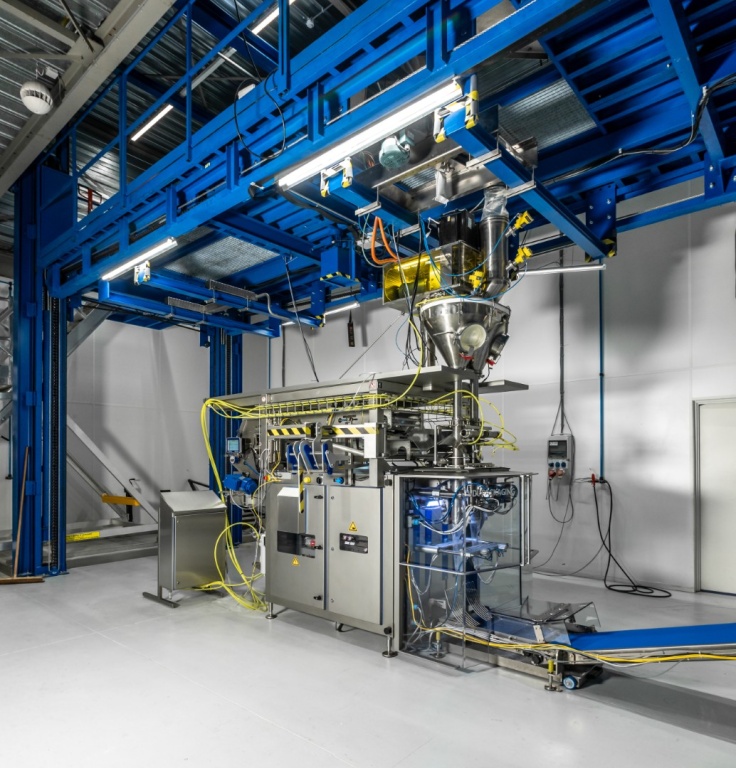

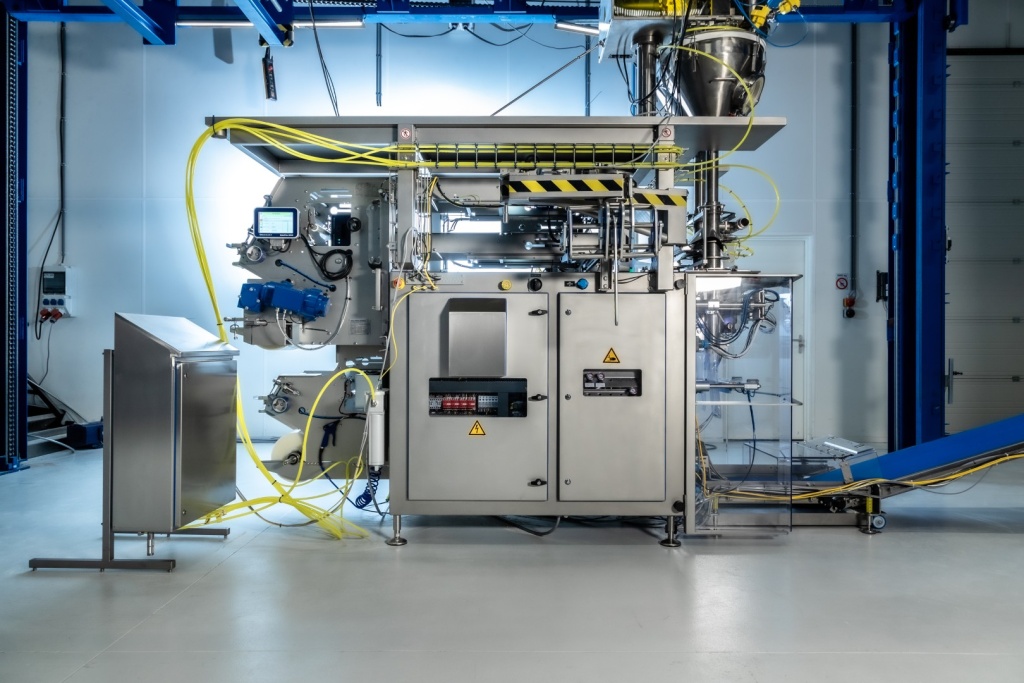

The model that we are showcasing is designed for the powder industry and is a proven concept. This model is equipped with a Spee-Dee twin auger and has a proven record of cutting CO₂ emissions by transitioning from canisters to bag-in-box packaging and increasing factory productivity. Our installation currently delivers over 200 pillow bags per minute (100 per tube), each filled with 400 grams of powder.
For other markets, the output may vary depending on your specific product, bag size, and packaging materials.

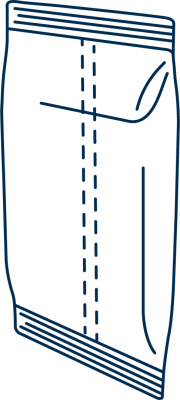

Pillow Bags
Maximum bag width: 140 mm
Maximum speed: Depending on bag size, product and film material

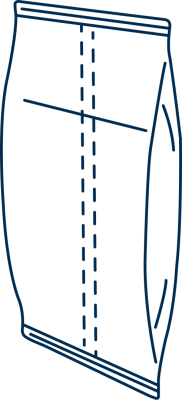

Gusseted Bags:
Maximum bag width depends on the bag depth (W+D = 140mm)
Maximum speed: Depending on bag size, product and film material

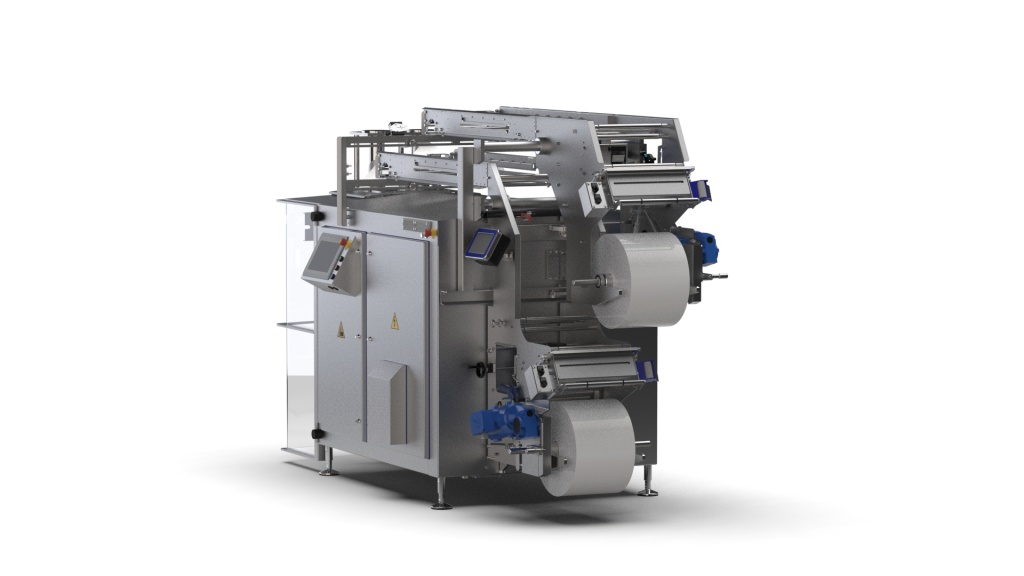

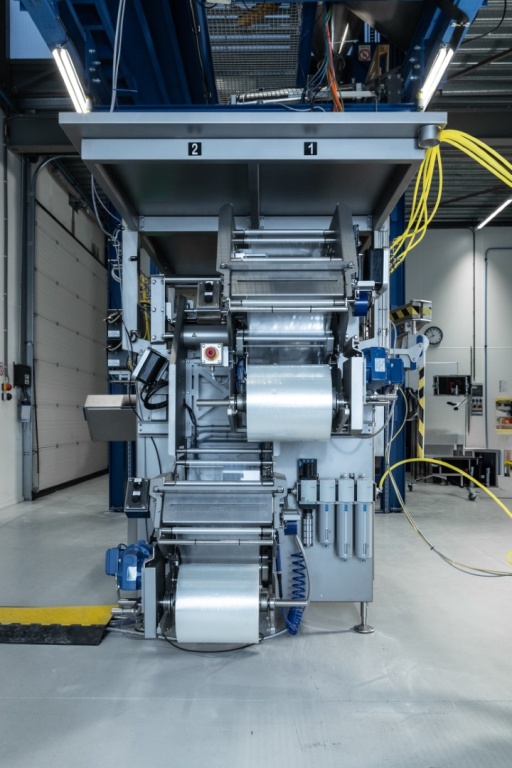

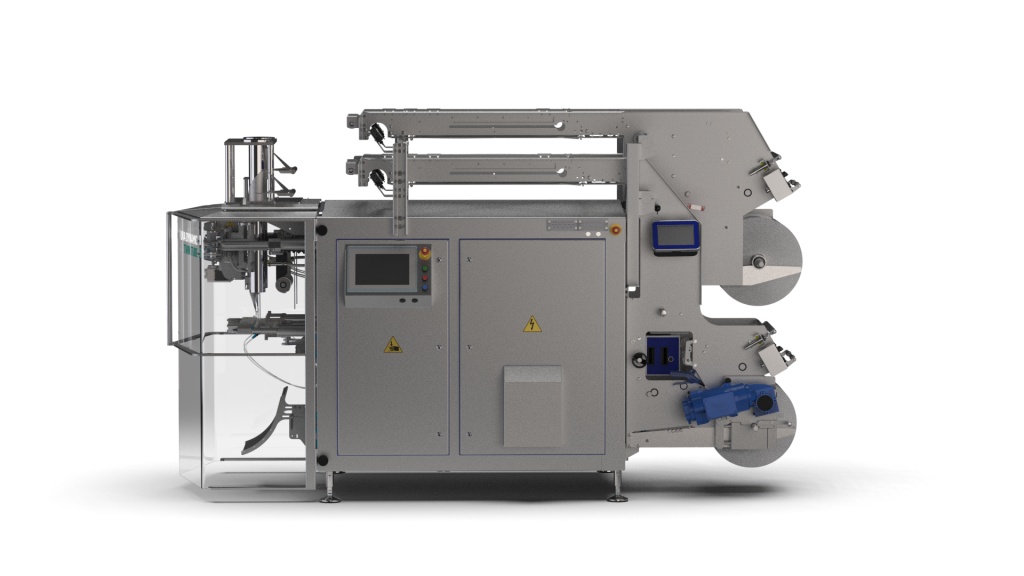

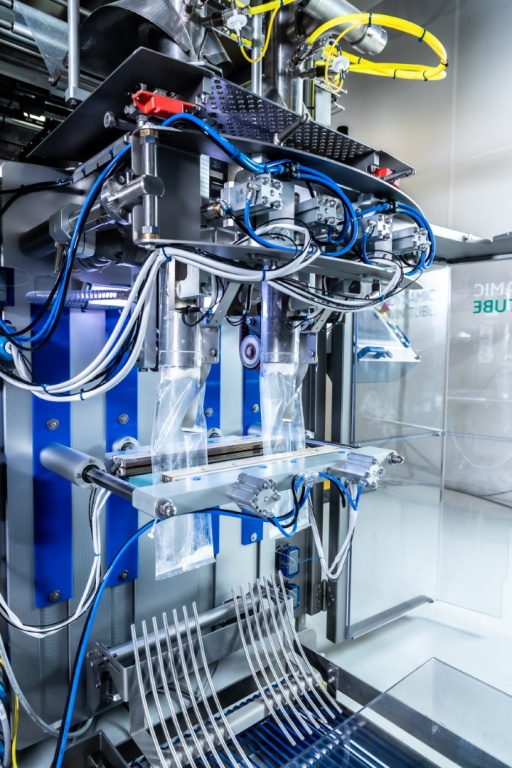

The Twin Tube has two separate film transport units, each capable of holding a film roll with a diameter of 450 mm and a maximum width of 310 mm. Each film transport web is servo-controlled and includes a 25 mm film web guide for precise alignment with the two distinct forming sets that create the bags.
The pitch between the tubes is 260 mm, allowing for seamless connections to high-speed multi-head weighers, liquid dosing pumps, or augers. This compatibility enhances the machine's versatility, enabling you to integrate it into your existing production line for a more efficient and streamlined operation.

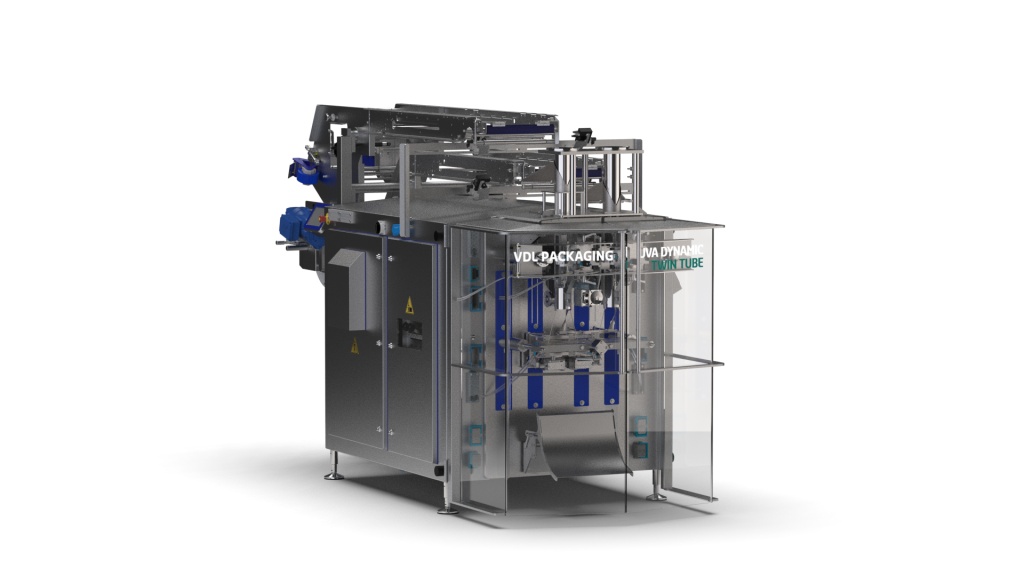

As part of our Dynamic range, the Twin Tube features an IP 55 hygienic stainless steel sloped frame, waterproof rubber seals, and hygienic ventilation covers. This design ensures efficient cleaning, reduces contamination risks, and prevents bacterial growth.
Enhance your production capabilities with the efficiency and quality of the UVA Dynamic Twin Tube!
Specifications
| Technology | Continuous motion |
| Frame | Stainless steel frame |
| Jaw width | 400 mm |
| Machine dimensions | 1.500/3.210/1.900 mm WDH |
| Weight | 1.000 kg |
| Power supply | 10/12 kVA |
| Control system | Allen Bradley 5500 CompactLogic |
| Max. seal pressure | 6 kN |
| Compressed air | 6 bar |
| Pack ML integration | Yes |
| Film transport | Vacuum |
| Max. film roll diameter | 2 x 450 mm |
| Max. film width | 2 x 310 mm |
| IP Standard | IP55 & IP66 |
| Seal methods | Heat seal |
Bag styles and dimensions
| Pillow | Gusseted | |
| Max film width | 310 mm | 310 mm |
| Max bag width | 140 mm | 110 mm |
| Min bag width | 50 mm | 50 mm |
| Max bag depth | 55 mm | |
| Min bag depth | 30 mm | |
| Max cut-off length | 300 mm | 300 mm |
| min cut-off length | 60 mm | 60 mm |
| Width + depth | max 140 mm |
